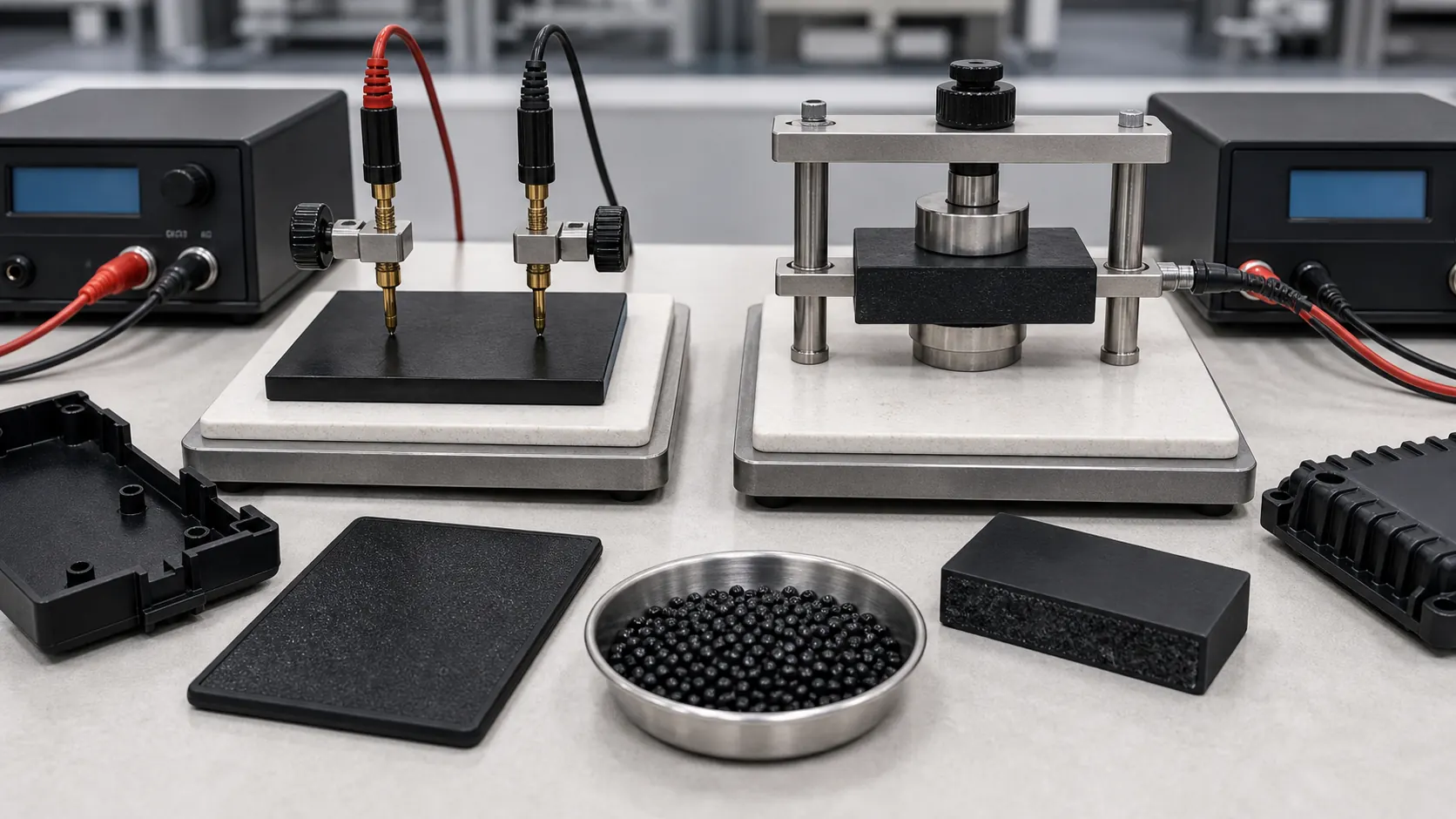

Surface Resistance vs Volume Resistance in Conductive Plastic Testing
Surface resistance and volume resistance measure different electrical paths, so the wrong test method can misjudge a conductive plastic project.
Surface readings are often useful for ESD trays, housings and liners, while volume or through-part measurements matter for current paths and contact parts.
This guide explains how sample geometry, electrode setup, humidity, filler network and molded-part design influence the result.
DEYU helps match the test method to the actual function before confirming a conductive or antistatic compound.
Buyer and engineer FAQ
Questions engineers often ask about this material route
Where can modified plastic with a conductive plastic requirement be used?
Typical fields include ESD trays, electronic housings, fixtures, EMI parts and antistatic logistics parts. For this article, DEYU would first confirm the working environment, wall thickness, expected lifetime and whether Conductive Plastics, DGK-PP DD2-3A Conductive PP, Carbon Fiber Reinforced ABS Pellets DGK-ABS CF15L matches the part geometry or needs formulation adjustment.
What are the main performance indicators for the "conductive plastic" target?
Focus on surface resistance, volume resistance, dispersion uniformity, impact strength and molding stability. Buyers should ask for data on molded parts, not only pellet data, because gate position, filler orientation and thickness can change the final value.
What should engineers watch during injection molding or processing?
Avoid excessive filler loading, control weld lines and verify resistance on the molded part. Start from the base-resin processing window, then adjust by molded-part resistance, appearance and mechanical data.
What details help DEYU recommend Conductive Plastics, DGK-PP DD2-3A Conductive PP, Carbon Fiber Reinforced ABS Pellets DGK-ABS CF15L more accurately?
Send the current resin or grade, drawing or photo, wall thickness, annual quantity, target standard, failure mode and required color. If a reference grade already passed one test but failed in production, include both data sets.
For a precise recommendation, share the part drawing, base resin, target performance, processing method and test standard with DEYU.
This page is for engineers and buyers who need to select conductive plastics by part function, resistance range and molded-part validation.
Conductive Plastics and DGK-PP DD2-3A Conductive PP. The product direction should be validated with the test method that matches the real electrical path in the part.
1. Background / Problem
A common failure in conductive plastic projects is that different teams use different test methods. A supplier may report surface resistance on a plaque, while the customer needs volume resistance, conductivity or resistance across a contact zone.
The material can pass one method and fail another because each method measures a different electrical behavior.
2. Technical Difficulty / Why It Happens
Surface resistance describes current flow across the surface. It is often relevant for ESD trays, housings, liners and dust-control parts.
Volume resistance or conductivity describes current flow through material thickness. It is more relevant for highly conductive parts, plate-like components and structures where through-thickness conduction matters.

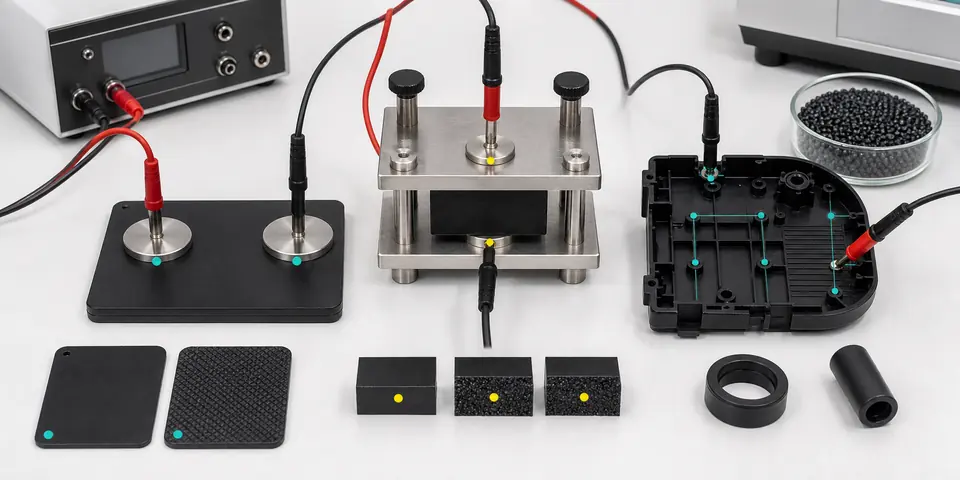

Electrode type, pressure, sample thickness, surface texture, flow direction, filler distribution, humidity and measurement position can all change the result.
3. DEYU Material Direction
DEYU recommends confirming the application function before fixing the test method. DGK conductive materials may need plaque testing, molded part testing and multiple measurement positions depending on resin and part geometry.
4. Reference Product Data
| Material direction | Main testing focus |
|---|---|
| DGK-PP DDL28 / conductive plastics platform | Conductivity or volume-related behavior may be important for high-conductive PP plates |
| DGK-PP DD2-3A | Surface resistance and molded-part distribution for 10^2-10^3 ohm PP direction |
| DGK-PP DD4-5A-JC | Resistance plus flame-retardant validation |
| DGK-ABS DD3C / DGK-ABS CF15L | Resistance in different molded zones plus mechanical performance |
| DGK-PA66 CF15L-CF40L | Resistance, conditioning and dimensional checks |
| DGK-POM DD4-5ML | Resistance together with wear and sliding behavior |
| DGK-TPU DD3-4ML / DGK-TPR DD6-9A | Resistance under compression or bending |
5. Real Customer Application Case
A customer approved a material using plaque surface resistance. In production, the contact zone on the molded part needed through-part conduction and failed. The validation plan was updated to include volume-related testing and contact-zone checks on the molded part.
6. Validation Data Table
| Item | Surface resistance only | Surface + volume-related test | DEYU molded part validation direction |
|---|---|---|---|
| Test specimens | Standard plaques | Plaques + thickness samples | Customer molded parts |
| Resistance pass rate | 92% | 84% | Target >90% on relevant positions |
| Failure discovered before production | Low | Medium | High |
| Contact area resistance check | Not included | Partly included | Included |
| Molding variation check | Not included | Limited | Included |
| Production scrap risk | High | Medium | Target reduced |
| Internal validation reliability | Low | Medium | Target high |
This case is based on a real customer scenario from DEYU's internal project records.
7. Result Interpretation
Testing conductive plastics should begin with the application question: where does current or static charge need to go?
If the function is dust control, surface resistance may be enough. If the part must conduct through thickness or act as a conductive structure, volume-related testing is necessary.
8. Suitable Applications
- Conductive PP molded parts
- High-conductive PP plates
- Conductive ABS housings
- Carbon-fiber conductive PA66 parts
- Conductive PE trays
- Conductive POM sliding parts
- Conductive TPU and TPR flexible contacts
9. What Buyers Should Provide
Buyers should provide the required test method, surface or volume resistance requirement, electrode type if specified, sample thickness, part drawing, test position, conditioning requirement and whether the function is ESD dissipation or current conduction.
Conclusion
Final material selection should be confirmed on the actual part: resistance, mechanics, processing, geometry and service conditions need to be evaluated together.
