Graphite Conductive ABS for Housings, Fixtures and ESD Structural Parts
This page is for buyers and engineers who need a conductive plastic solution based on real molded-part validation, not only a single resistance reading.
Buyer and engineer FAQ
Questions engineers often ask about this material route
Where can ABS with a conductive plastic requirement be used?
Typical fields include ESD trays, electronic housings, fixtures, EMI parts and antistatic logistics parts. For this article, DEYU would first confirm the working environment, wall thickness, expected lifetime and whether DGK-ABS DD3C Graphite Conductive ABS, Conductive Plastics, Carbon Fiber Reinforced ABS Pellets DGK-ABS CF15L matches the part geometry or needs formulation adjustment.
What are the main performance indicators for the "conductive plastic" target on ABS?
Focus on surface resistance, volume resistance, dispersion uniformity, impact strength and molding stability. Buyers should ask for data on molded parts, not only pellet data, because gate position, filler orientation and thickness can change the final value.
What should engineers watch during injection molding or processing?
For ABS, a practical starting window is 210-245°C melt / 50-80°C mold. Avoid excessive filler loading, control weld lines and verify resistance on the molded part. Final parameters should follow part thickness, gate design and the actual machine.
What details help DEYU recommend DGK-ABS DD3C Graphite Conductive ABS, Conductive Plastics, Carbon Fiber Reinforced ABS Pellets DGK-ABS CF15L more accurately?
Send the current resin or grade, drawing or photo, wall thickness, annual quantity, target standard, failure mode and required color. If a reference grade already passed one test but failed in production, include both data sets.
For a precise recommendation, share the part drawing, base resin, target performance, processing method and test standard with DEYU.
This page is for buyers and engineers who need a conductive plastic solution based on real molded-part validation, not only a single resistance reading.
DGK-ABS DD3C Graphite Conductive ABS and Conductive Plastics. This combination fits molded housings where surface quality, resistance stability and ABS processing behavior must be balanced.
1. Background / Problem
ABS is often selected for housings, covers, fixtures and small structural components because it offers balanced toughness, easier molding and practical surface quality. When the same part needs ESD or conductive performance, ordinary ABS or an external antistatic treatment is usually not reliable enough.
Coating or spraying can pass an initial reading, but the surface function may decline after handling, cleaning or abrasion. Graphite conductive ABS builds the conductive path into the molded material, reducing dependence on post-treatment.
2. Technical Difficulty / Why It Happens
Conductive ABS is not only a resistance problem. The filler route can affect impact strength, melt flow, gloss, weld lines and dimensional behavior.

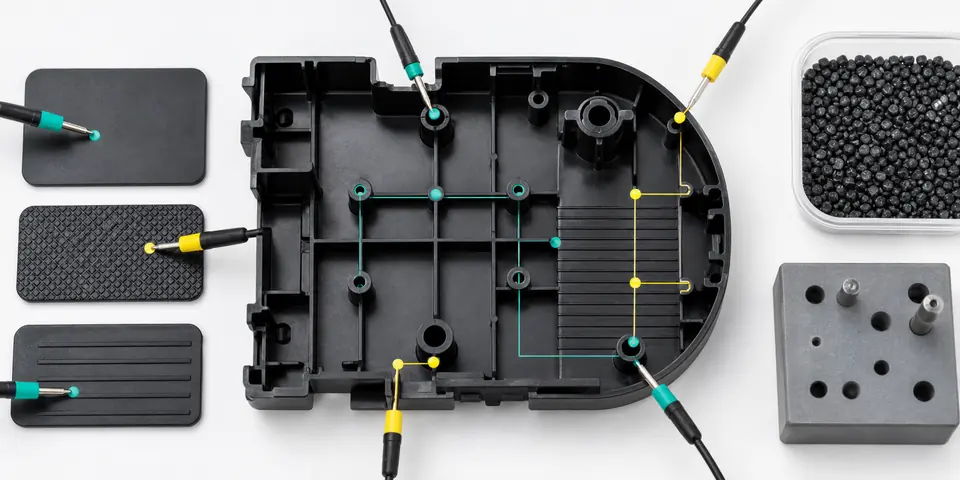

Resistance can also vary between thick and thin sections, near ribs and bosses, or close to the gate. Surface texture and electrode contact can change the measured value, so the final part must be validated at several positions.
3. DEYU Material Direction
DEYU may recommend DGK-ABS DD3C as the graphite conductive ABS direction. Existing DEYU product data positions this grade as graphite composite conductive ABS with surface resistance around 10^3-10^4 ohm and injection molding support.
For parts that need higher rigidity, DEYU can separately evaluate DGK-ABS CF15L, a carbon-fiber reinforced conductive ABS direction with flexural strength >=138 MPa and surface resistance <=10^4 ohm-cm. For general housings where surface quality and processing balance matter, DGK-ABS DD3C is usually the first direction to check.
4. Reference Product Data
| Property | DGK-ABS DD3C Direction |
|---|---|
| Base resin | ABS |
| Modification route | Graphite composite conductive ABS |
| Surface resistance | Around 10^3-10^4 ohm |
| Processing | Injection molding |
| Typical applications | ESD housings, fixtures, conductive covers, molded ABS structural parts |
| Related higher-rigidity direction | DGK-ABS CF15L, flexural strength >=138 MPa and surface resistance <=10^4 ohm-cm |
5. Real Customer Application Case
A customer used standard ABS with an antistatic surface treatment for fixture housings. The first batches passed initial resistance checks, but after repeated handling and cleaning, dust adhesion increased and resistance readings drifted upward.
6. Validation Data Table
| Item | Coated standard ABS | Previous conductive ABS trial | DEYU DGK-ABS DD3C trial direction |
|---|---|---|---|
| Trial quantity | 800 pcs | 1,000 pcs | 1,200 pcs |
| Surface resistance after molding | 10^8-10^10 ohm | 10^5-10^6 ohm | Target around 10^3-10^4 ohm |
| Surface resistance after cleaning | >10^12 ohm | 10^6-10^8 ohm | Target remains in ESD / conductive range |
| Dust adhesion complaint rate | 5.8% | 3.6% | Target <2.0% |
| Molding scrap rate | 2.8% | 5.2% | Target <4.0% |
| Surface appearance rejection | 1.5% | 4.0% | Target <2.5% after process tuning |
| Internal pass rate | 78% | 84% | Target >92% |
This case is based on a real customer scenario from DEYU's internal project records.
7. Result Interpretation
For ABS housings and fixtures, a very low resistance value is not enough if the part becomes brittle, shows flow marks or fails snap-fit assembly. The correct balance is stable resistance plus acceptable appearance and toughness.
Graphite conductive ABS is suitable when the buyer wants molded-in conductive behavior without moving directly to a high-rigidity carbon-fiber route.
8. Suitable Applications
- ESD equipment housings
- Conductive ABS covers
- Assembly fixtures and anti-static jigs
- Electronic handling components
- Molded ABS parts where coating durability is a concern
9. What Buyers Should Provide
Buyers should provide the target resistance range, current ABS grade, surface treatment method, part drawing, wall thickness, gate position, surface texture, cleaning method, appearance requirement, failure data and estimated production volume.
Conclusion
Final selection should be confirmed on the actual molded part: resistance, processing, mechanical behavior, appearance and service conditions need to be evaluated together.
