Why Is POM Compounded with PTFE Suitable for Wear-Resistant Products?

Short Answer

POM/PTFE wear-resistant material combines the dimensional stability, rigidity, low water absorption and molding performance of POM with the low-friction, self-lubricating and anti-stick-slip behavior of PTFE. In sliding applications, PTFE can reduce friction coefficient, lower wear loss, reduce operating noise, improve starting smoothness and reduce surface roughening. Yuyao Deyu DEYU Plastics provides DGK-POM TF90M PTFE wear-resistant POM🔍 for gears, sliders, bushings, rollers, guide rails and low-noise moving components.

Why Many Wear-Resistant Parts Use POM + PTFE

POM, also known as polyoxymethylene or acetal, is already one of the most common engineering plastics for moving parts. It has relatively low friction, low water absorption, good dimensional stability, high rigidity and stable injection molding performance. Because of these properties, POM is widely used in gears, bushings, sliders, rollers, guide rails, clips, conveyor parts and mechanical moving components.

However, standard POM is not enough for every friction condition. Customers may see gear noise after long operation, slider surface roughening under dry friction, bushing clearance increase against metal shafts, roller wear marks, high starting resistance, slight sticking, unstable motion or visible wear debris.

In these conditions, compounding POM with PTFE becomes a practical wear-resistant upgrade. PTFE, or polytetrafluoroethylene, is known for very low friction, low surface energy, self-lubrication and anti-adhesion behavior. When PTFE is compounded into POM, the material can keep POM’s dimensional stability and structural foundation while gaining smoother low-friction performance.

DEYU does not select POM/PTFE only by asking how much PTFE should be added. The correct formulation depends on whether the product is a gear, slider, bushing, roller, guide rail or precision moving part, and on load, speed, counter material, lubrication condition, temperature and target service life.

1. What Roles Do POM and PTFE Play?

POM Provides Structure and Dimensional Stability

POM is a highly crystalline engineering plastic. In a POM/PTFE compound, it acts as the structural base. It provides rigidity, dimensional stability, low water absorption, fatigue resistance, molding stability and suitability for precision gears and sliding parts.

If a material only uses PTFE without a structural engineering plastic such as POM, it may be slippery but not strong or stable enough for precision molded components. In the POM/PTFE system, POM is responsible for load bearing and molding stability, while PTFE is responsible for lubrication and friction reduction.

PTFE Provides Low Friction and Self-Lubrication

PTFE mainly improves the sliding interface. It does not work like glass fiber, which increases stiffness, or mineral filler, which often reduces cost. PTFE reduces interfacial adhesion and shear resistance.

After PTFE is dispersed in POM, a low-friction PTFE-containing interface can gradually form during sliding. This helps reduce direct adhesion between the POM matrix and the counter surface, whether the counter surface is metal, POM, PA, rubber or another engineering material.

PTFE in POM mainly helps reduce friction coefficient, reduce starting resistance, improve dry sliding, reduce stick-slip, lower noise, reduce surface roughening, improve counter-surface condition and reduce dependence on grease or oil.

2. Main Mechanisms of Wear Improvement

Lower Friction Coefficient

Standard POM already has good sliding behavior, but under long-term dry friction, insufficient lubrication or rough counter surfaces, friction resistance may increase. After adding PTFE, shear resistance at the friction interface decreases. The slider, gear, bushing or roller moves more smoothly instead of locally sticking to the counter surface.

For customers, this usually means smoother movement, lower starting resistance, lower noise, lower temperature rise, slower wear and more stable operation after installation.

Anti-Stick-Slip Behavior

Many sliding parts work at low speed, intermittently, reciprocally or with frequent starts and stops. In these conditions, stick-slip can occur: the part may feel sticky during start-up, move unevenly or produce noise.

PTFE reduces interfacial adhesion and narrows the difference between static friction and dynamic friction. This helps reduce start-up sticking and motion fluctuation in door and window sliders, office equipment parts, appliance sliding structures, low-speed sliders and small transmission parts.

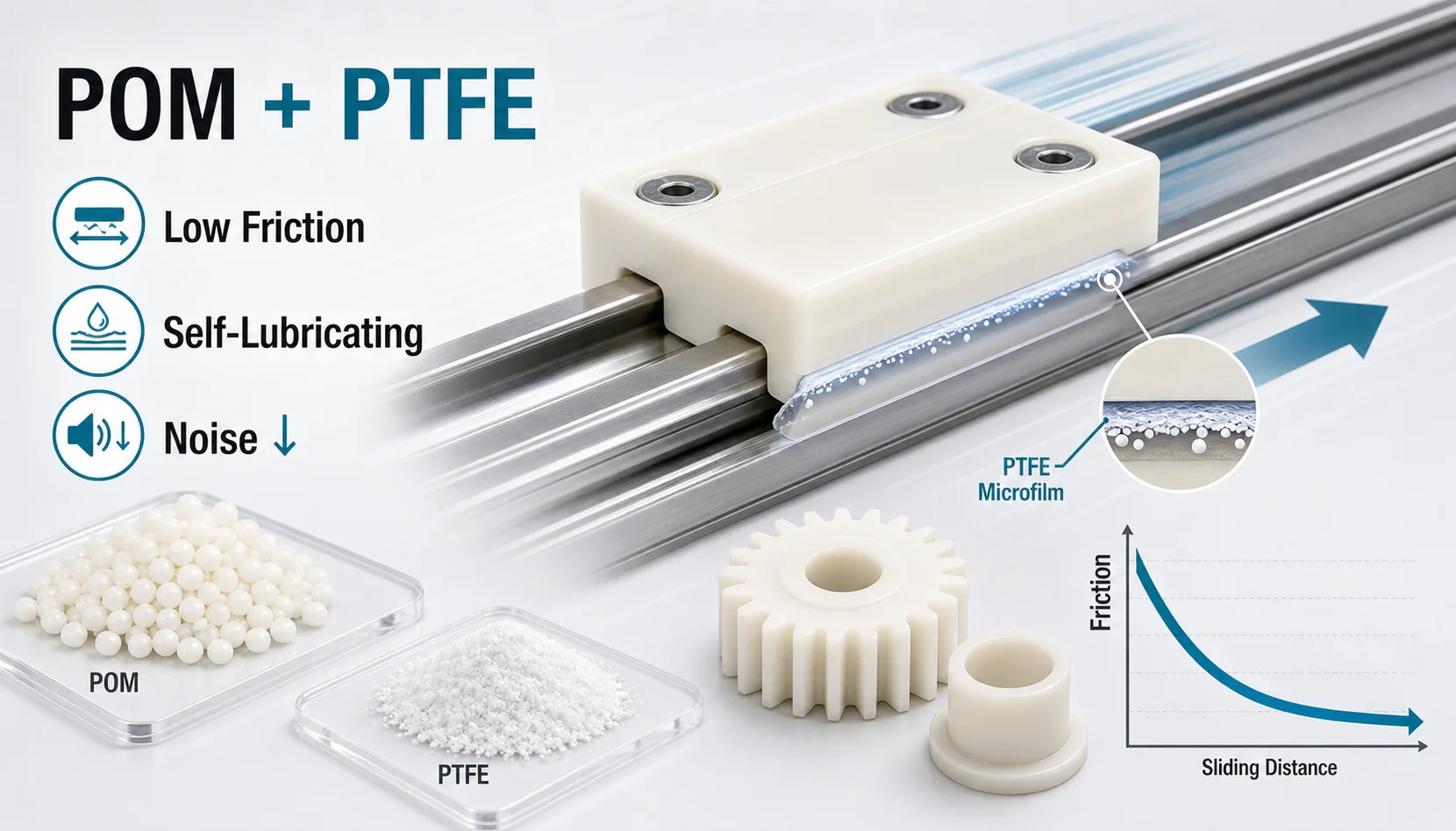

Low-Friction Transfer Layer

During friction, POM/PTFE can help form a low-friction transfer layer on the counter surface. This layer may contain POM wear debris, PTFE lubricating phase and friction-interface products. Once stable, it reduces direct contact between POM and the counter surface and moves the system from running-in toward more stable wear.

Transfer-layer behavior depends strongly on the counter surface. Steel, stainless steel, aluminum alloy, POM, PA and rubber can all behave differently. Final testing should be done with the actual mating part or a close simulation.

Lower Friction Heat

During long-term friction, local surface temperature can rise. If the surface becomes too hot, POM may show surface softening, polishing marks, roughening, debris accumulation or slight smearing. PTFE lowers friction and therefore reduces friction heat, making the wear process more stable.

This matters for dry sliding bushings, continuously running gears, guide rails, rollers, moving parts in unattended equipment and transmission parts requiring low noise and low temperature rise.

Less Dependence on External Lubrication

Many customers want to reduce grease because it attracts dust, contaminates surrounding parts, adds maintenance work or is difficult to refill inside compact structures. POM/PTFE improves the material’s own sliding ability under dry or lightly lubricated conditions.

It cannot replace every lubrication design, but in many medium-to-low-load, low-noise and precision moving parts, it can reduce dependence on external lubrication and improve maintenance convenience.

3. PTFE Is Not “The More, The Better”

Because PTFE is slippery, it is easy to assume that more PTFE is always better. This is not correct.

PTFE reduces friction, but it does not provide high structural strength or rigidity by itself. Excessive PTFE may reduce material strength, stiffness, impact performance, weld line strength, injection flow stability, surface quality and load-bearing capacity. It also increases cost.

The key is the right PTFE system, not simply high PTFE content. Precision gears focus on noise, dimensional stability and tooth surface wear. Sliders focus on starting resistance and stick-slip. Bushings focus on wear loss, clearance change and shaft condition. Rollers focus on rolling wear, deformation and noise. Guide parts focus on reciprocating stability, debris and long-term dimensional change.

Different products need different PTFE balance. One universal formula should not be used for every POM wear-resistant application.

4. Typical Applications

POM/PTFE Gears

POM/PTFE can reduce gear tooth friction, noise and tooth surface wear while maintaining POM’s dimensional stability. It is suitable for small transmission gears, appliance gears, office equipment gears, printer gears, low-noise gear sets and precision instrument transmission parts.

Key selection points include gear module, speed, load, mating gear material, lubrication condition, noise requirement, service life and dimensional precision.

POM/PTFE Sliders

Sliders are sensitive to friction resistance and surface roughening. POM/PTFE improves starting resistance and operating stability, especially in low-speed, intermittent and reciprocating sliding applications.

It can be used in door and window sliders, guide sliders, automation equipment sliders, packaging machine sliders, appliance sliding structures, office equipment sliding parts and rail movement components.

POM/PTFE Bushings and Sleeves

Bushings and sleeves often work against metal shafts for long periods. If standard POM shows wear, noise, temperature rise or clearance increase, POM/PTFE can be evaluated. It helps reduce friction between the bushing and shaft and improves running smoothness.

POM/PTFE Rollers and Guide Wheels

Rollers and guide wheels require dimensional stability, low noise and wear resistance. POM/PTFE can improve low-noise and wear behavior while keeping POM rigidity and molding stability. If load is high, POM/PTFE may need to be combined with aramid, reinforcement or structural optimization.

Precision Guide Parts

Guide rails and precision moving parts focus on smoothness, dimensional stability and stick-slip control. If the customer requires no abnormal noise, smooth movement and long-term operation without frequent lubrication, POM/PTFE should be evaluated first.

5. Comparison with Other Wear-Resistant POM Systems

POM/PTFE vs Standard POM

Standard POM is suitable for general gears, sliders, clips and structural parts. POM/PTFE should be considered when standard POM shows gear noise, rough sliding, excessive debris, high starting resistance, bushing clearance increase or insufficient service life.

POM/PTFE vs POM/MoS2

POM/PTFE focuses more on low friction, anti-stick-slip, low noise and smooth movement. POM/MoS2 focuses more on solid lubrication, load-bearing sliding stability and dark-color wear-resistant parts. For demanding projects, POM + PTFE + MoS2 can be evaluated.

POM/PTFE vs POM/Aramid

PTFE makes the material slide more easily. Aramid supports the wear surface and improves service life stability. If the customer mainly needs low friction and low noise, POM/PTFE may be suitable. If the part has higher load or longer service-life targets, POM/aramid or POM/PTFE + aramid may be better.

POM/PTFE vs Glass Fiber Reinforced POM

Glass fiber reinforced POM mainly improves stiffness and heat deflection. It is not a lubricating system, and exposed glass fiber may wear the counter surface. POM/PTFE is more suitable for moving parts requiring low friction, self-lubrication and low noise.

6. Customer Case: Standard POM Slider Upgraded with PTFE

A customer produced an internal guide slider using standard POM. The slider moved slowly and reciprocally against a metal guide rail. Initial operation was acceptable, but after some use, the customer reported slight noise, polished and roughened surfaces, increased debris and occasional sticking during start-up.

The product was a thin-wall injection-molded slider with positioning holes. It worked under low-speed reciprocating dry friction against a metal guide rail. The target was to reduce noise, reduce surface roughening and improve start-up smoothness.

DEYU identified three causes. Standard POM had some self-lubrication, but not enough for dry reciprocating motion. Low-speed start-stop movement created slight stick-slip. Wear debris from long-term contact further affected sliding smoothness.

The first trial used a basic POM/PTFE system to reduce friction and starting resistance. The slider started more smoothly and noise decreased. The second trial optimized PTFE dispersion and POM matrix stability, reducing debris and improving surface condition. The third trial adjusted molding shrinkage and dimensional consistency around positioning holes.

After small-batch validation, the customer reported improved sliding smoothness, lower operating noise and less start-up sticking. The project moved into further service-life validation.

7. DEYU DGK-POM/PTFE Solution Direction

Yuyao Deyu DEYU Plastics provides DGK-POM/PTFE wear-resistant modified solutions for low-friction, self-lubricating and wear-resistant POM applications.

The series can be adjusted for PTFE system, natural or black color, high-flow POM/PTFE, low-noise POM/PTFE, low-wear POM/PTFE, low-stick-slip POM/PTFE, POM/PTFE + MoS2, POM/PTFE + aramid, and dedicated solutions for gears, bushings, sliders, rollers and guide rails.

DEYU recommends that customers provide product application, part photo or drawing, counter material, load, speed, movement type, dry or lubricated condition, operating temperature, service-life target, current material, current problem, wall thickness, gate location and dimensional tolerance.

With this information, DEYU can judge whether POM/PTFE, POM/MoS2, POM/aramid or POM/PTFE + aramid is more suitable.

Conclusion

POM compounded with PTFE is suitable for wear-resistant products because it combines POM’s dimensional stability, rigidity and moldability with PTFE’s low-friction, self-lubricating and anti-stick-slip properties.

POM provides structural support and precision molding. PTFE improves the sliding interface. This combination is especially suitable for gears, sliders, bushings, rollers, guide rails and low-noise moving parts.

However, POM/PTFE is not simply a matter of adding more PTFE. A stable solution must be balanced according to load, speed, counter material, motion type, temperature, lubrication condition and target service life.

For POM/PTFE wear-resistant materials, low-friction POM gear materials, self-lubricating POM slider materials, POM bushing solutions or low-noise moving part solutions, customers can contact Yuyao Deyu DEYU Plastics for small-batch trials and formulation validation.
