Aramid-Reinforced PA66 for Bushings and Guide Parts
PA66 is a common engineering plastic for bushings, guide rails, brackets, and moving support parts. It has good strength and heat resistance, but ordinary PA66 may show wear marks, deformation, or unstable friction under repeated movement.
Buyer and engineer FAQ
Questions engineers often ask about this material route
Where can PA66 with a reinforced plastic requirement be used?
Typical fields include structural brackets, high-stiffness housings, supports, clips and metal-replacement parts. For this article, DEYU would first confirm the working environment, wall thickness, expected lifetime and whether DGK-PA66 FL20L, wear-resistant nylon compounds matches the part geometry or needs formulation adjustment.
What are the main performance indicators for the "reinforced plastic" target on PA66?
Focus on tensile strength, flexural modulus, impact balance, warpage, fiber orientation and screw holding. Buyers should ask for data on molded parts, not only pellet data, because gate position, filler orientation and thickness can change the final value.
What should engineers watch during injection molding or processing?
For PA66, a practical starting window is 260-295°C melt / 75-100°C mold, dry before molding. Control fiber breakage, gate direction and mold temperature; dry PA/PBT/PC blends before molding. Final parameters should follow part thickness, gate design and the actual machine.
What details help DEYU recommend DGK-PA66 FL20L, wear-resistant nylon compounds more accurately?
Send the current resin or grade, drawing or photo, wall thickness, annual quantity, target standard, failure mode and required color. If a reference grade already passed one test but failed in production, include both data sets.
For a precise recommendation, share the part drawing, base resin, target performance, processing method and test standard with DEYU.
1. Why Aramid Reinforced PA66 Is Used
PA66 is a common engineering plastic for bushings, guide rails, brackets, and moving support parts. It has good strength and heat resistance, but ordinary PA66 may show wear marks, deformation, or unstable friction under repeated movement.

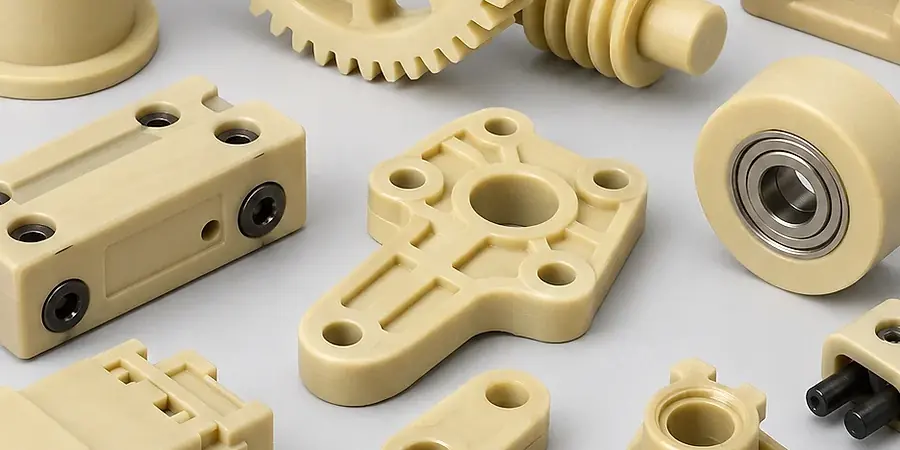

DGK-PA66 FL20L and wear-resistant nylon compounds. DGK-PA66 FL20L is an aramid reinforced PA66 direction for high strength, low shrinkage, and wear-resistant structural parts
Aramid fiber modification is a practical route when the part needs:
wear resistance; toughness retention; repeated sliding durability; lower wear powder; better service life than ordinary nylon; less brittleness than some high-mineral filler routes.
For DEYU, aramid reinforced PA66 is usually not treated as a universal grade. It is adjusted according to load, friction pair, moisture condition, color, and molding structure.
2. Technical Route
Aramid fiber can help improve abrasion resistance and support the polymer matrix during sliding. Compared with hard mineral fillers, aramid-based routes can be useful where wear resistance and toughness must be balanced.
Key formulation points:
fiber dispersion; PA66 moisture conditioning; impact strength retention; wear depth reduction; surface damage control; flowability for injection molding; dimensional stability after conditioning.
If the part requires higher stiffness, glass fiber may also be evaluated. If the part mainly needs lower friction, PTFE modification may be compared. DEYU can use DGK-PA66 FL20L as the reference grade during validation when aramid reinforced PA66 is the closest route.
3. Internal Customer Case: PA66 Bushing With Wear and Loosening
Original Pain Point
A customer used standard PA66 for a bushing in an industrial moving mechanism. The bushing passed initial assembly, but after continuous running, wear increased clearance and caused vibration.
Original debugging record:
monthly production: 22,000 pieces; test batch: 2,500 pieces; clearance out-of-limit rate after running test: 6.5%; average wear depth: 0.118 mm; vibration complaint rate: 3.7%; replacement interval: about 3 months under customer test condition.
DEYU Material Direction
DEYU recommended an aramid reinforced PA66 route with reference grade DGK-PA66 FL20L.
Development target:
reduce wear depth; retain toughness; avoid excessive brittleness; improve bushing life; control molding shrinkage; keep dimensional stability after conditioning.
Trial Adjustment
The first trial improved wear resistance, but the customer wanted smoother assembly.
DEYU adjusted:
fiber dispersion; flowability direction; molding shrinkage window; moisture conditioning recommendation; surface finish of the bushing.
The second trial focused on clearance stability after repeated operation.
4. Validation Data
| Item | Standard PA66 | DEYU DGK-PA66 FL20L Aramid PA66 |
|---|---|---|
| Monthly production record | 22,000 pcs | 21,000 pcs trial batch |
| Average wear depth | 0.118 mm | 0.047 mm |
| Clearance out-of-limit rate | 6.5% | 1.6% |
| Vibration complaint rate | 3.7% | 0.9% |
| Replacement interval under test | About 3 months | About 6–7 months direction |
| Assembly scrap rate | 2.8% | 1.2% |
| Surface wear powder | Obvious | Reduced |
Case Result
In this internal customer case, the aramid reinforced PA66 route reduced average wear depth by about 60% compared with standard PA66. The bushing retained better clearance stability and showed lower vibration complaints in the customer’s internal record.
The improvement came from both material selection and molding/process adjustment.
5. When This Route Is Suitable
Aramid reinforced PA66 may be suitable for:
bushings; guide rails; sliding brackets; industrial moving parts; parts requiring wear resistance and toughness together; medium-load mechanisms; applications where standard PA66 wears too quickly.
It should be validated carefully if the part is highly moisture-sensitive, very thin-walled, or requires a light color.
6. Data Buyers Should Prepare
Recommended information:
current nylon grade; part drawing; mating material; load and movement direction; humidity or conditioning requirement; current wear depth; scrap rate; production quantity; life-cycle test method; target replacement interval; color requirement; whether glass fiber, PTFE, or aramid route is preferred.
Conclusion
Aramid reinforced PA66 is a useful route for wear-resistant nylon parts when ordinary PA66 shows wear, clearance increase, or unstable movement. The key is to balance abrasion resistance, toughness, flowability, moisture conditioning, and dimensional stability.
DEYU can support DGK-PA66 FL20L aramid PA66 validation, small-batch testing, wear-depth comparison, process tuning, and application-specific performance adjustment.
Contact DEYU: market@deyuplastics.com Website: www.deyuplast.com
Engineering decision path
This page is intended to work as a material-selection brief, not only as a product introduction. The engineering route starts with the failure mode, then narrows the base resin, additive package, molding window, and validation method.
- Use aramid reinforcement when the part needs wear resistance and toughness without the same abrasive behavior often associated with high glass fiber content.
- Define the operating motion, mating surface, load, speed, lubrication state, and allowed clearance before selecting the PA66 route.
- Balance aramid, lubricant additives, and PA66 conditioning behavior because moisture and fiber orientation both influence clearance and vibration.
- Validate with molded bushings or guide parts under the actual assembly load, not only with generic wear plaques.
Anonymous customer cases
Case 1: guide sleeve with vibration complaints
The customer had a PA66 part that initially fitted well but became noisy after service. DEYU proposed an aramid-reinforced PA66 route and focused validation on conditioned clearance, friction, and vibration response.
Case 2: sliding guide beside a metal rail
The project required wear reduction without damaging the mating rail. DEYU compared reinforcement routes and emphasized surface finish, wear debris, and molded dimensional stability before recommending samples.
How DEYU supports the project
- DEYU can adjust conductivity, wear resistance, toughness, flame-retardant direction, color, and processing flow as a combined formulation target instead of treating each property separately.
- Sample batches can be aligned with customer molds, part thickness, gate position, and expected tests before commercial supply.
- For international inquiries, DEYU engineers help translate application requirements into resin route, test items, sample plan, and risk points for purchasing and technical teams.
