Conductive LDPE Pellets DGK-LDPE DD4-5
Conductive and antistatic LDPE with 10^3-10^5 ohm resistance
General-purpose conductive and antistatic PE; surface resistance around 10^3-10^5 ohm for molded ESD parts.
Conductive LDPE compound DGK-LDPE DD4-5 with 10^3-10^5 ohm resistance for flexible ESD parts, disk-drive components, fax machine parts, videotape housings, antistatic packaging and low-resistance molded products. DEYU supports custom formulas, sample validation, bulk purchase and wholesale procurement.
Important parameters
- Base resin
- PE
- Model
- DGK-LDPE DD4-5
- Color
- Custom color matching supported
- Processing
- Injection molding. Injection molding, extrusion or other processes according to the formula.
- Key performance
- General-purpose conductive and antistatic PE; surface resistance around 10^3-10^5 ohm for molded ESD parts.
- Status
- Pellet compound
FAQ
Can this material be color matched?
Yes. DEYU can match black, natural, white or custom colors according to the base resin, filler system and target appearance.
Can the resistance or ESD level be customized?
Yes. Resistance range, stiffness and processing balance can be adjusted according to wall thickness, part design and grounding requirements.
Can international orders receive certification documents?
Yes. DEYU can provide material data sheets and common export documents, and can coordinate RoHS, REACH, UL-related or other third-party testing according to the order requirement.
How can I get a sample of DGK-LDPE DD4-5 or a similar material?
Submit the target resin, color, process and performance range. DEYU will suggest a sample grade or prepare a trial formula for sample validation. Request sample
Application areas
| Application area | Typical parts |
|---|---|
| Application area 1 | ESD trays |
| Application area 2 | sensor housings |
| Application area 3 | medical device accessories |
| Application area 4 | conductive textile parts |
| Application area 5 | shielding covers |
| Application area 6 | low-resistance molded clips |
Reference quote
- Minimum price
- USD 4.1/kg
- Maximum price
- USD 10.3/kg
- Delivery
- Tax-included reference price; freight is not included.
- Stock
- Standard stock reference: 1000 kg. Special color, performance or certification requirements require custom production.
Final quotation depends on the specific formula, color, order volume and testing requirements.
Data sheet

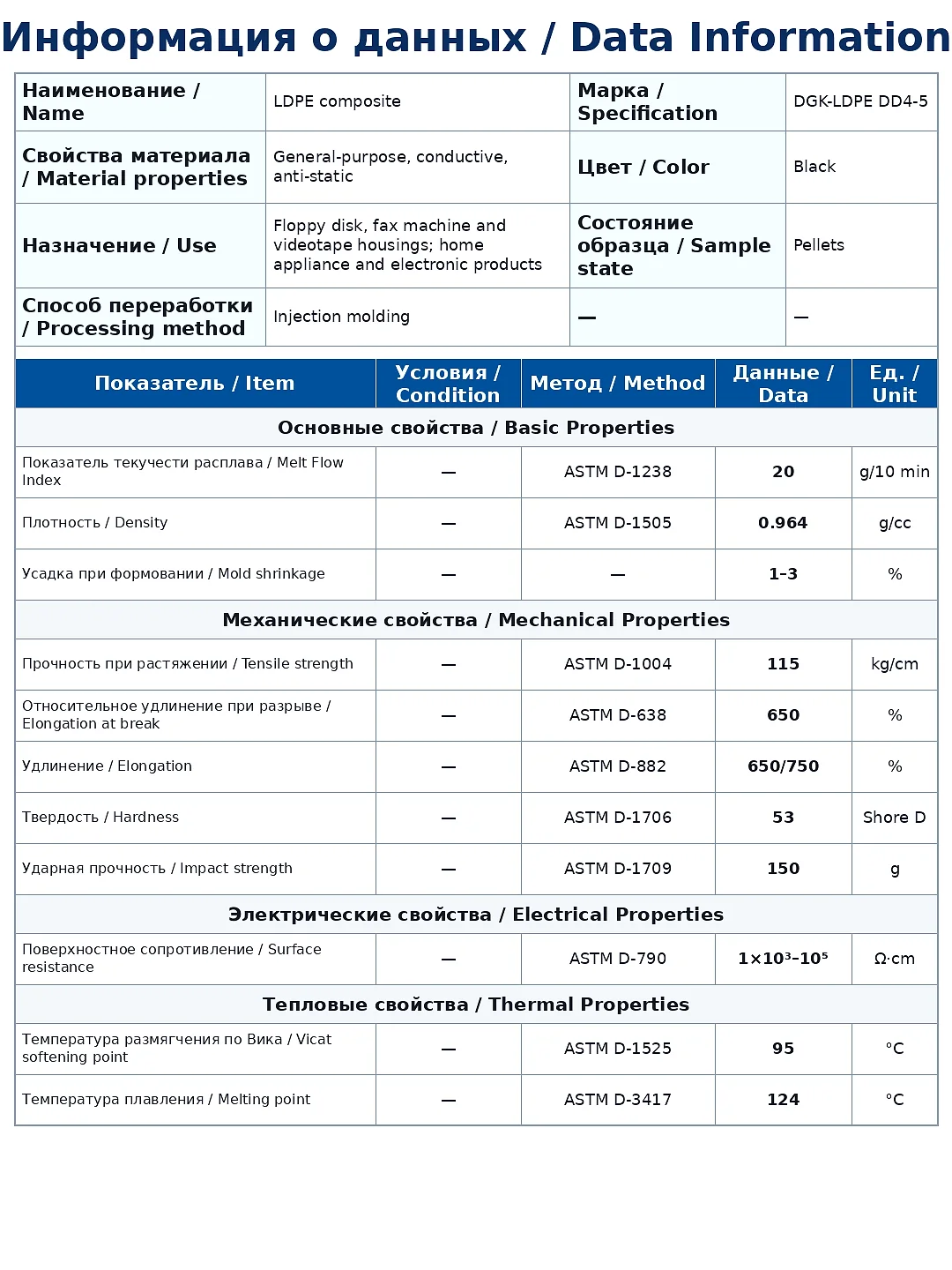

Physical Property Data Sheet
| Name | LDPE composite | Specification | DGK-LDPE DD4-5 |
|---|---|---|---|
| Material properties | General-purpose, conductive, anti-static | Color | Black |
| Use | Floppy disk, fax machine and videotape housings; home appliance and electronic products | Sample state | Pellets |
| Processing method | Injection molding | - | / |
| Item | Condition | Method | Data | Unit |
|---|---|---|---|---|
| Basic Properties | ||||
| Melt Flow Index | / | ASTM D-1238 | 20 | g/10 min |
| Density | / | ASTM D-1505 | 0.964 | g/cm3 |
| Mechanical Properties | ||||
| Yield strength | / | ASTM D-638 | 11.5 | kg/cm2 |
| Elongation at break | / | ASTM D-638 | 650 | % |
| Izod impact strength | / | ASTM D-256 | 650/750 | % |
| Hardness | / | ASTM D-1706 | 53 | Shore D |
| Impact strength | / | ASTM D-1709 | 150 | g |
| Electrical Properties | ||||
| Surface resistance | / | ASTM D-257 | 1x10^3-10^4 | ohm-cm |
| Thermal Properties | ||||
| Vicat softening point | / | ASTM D-1525 | 95 | ℃ |
| Melting point | / | ASTM D-3417 | 124 | ℃ |
